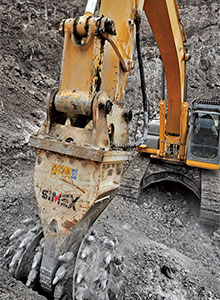

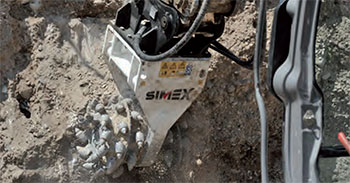

Double drum cutter heads

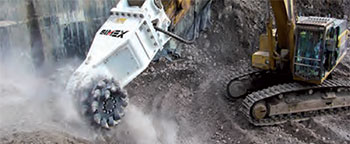

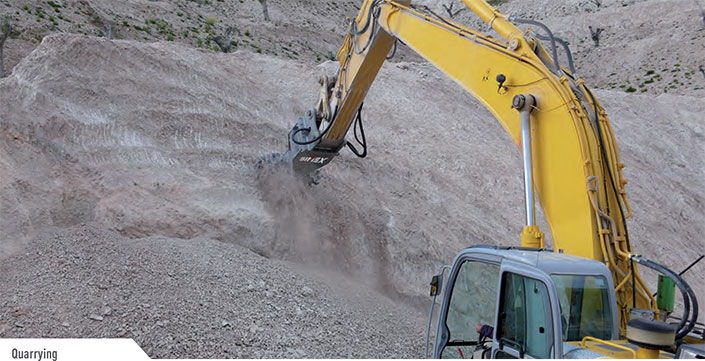

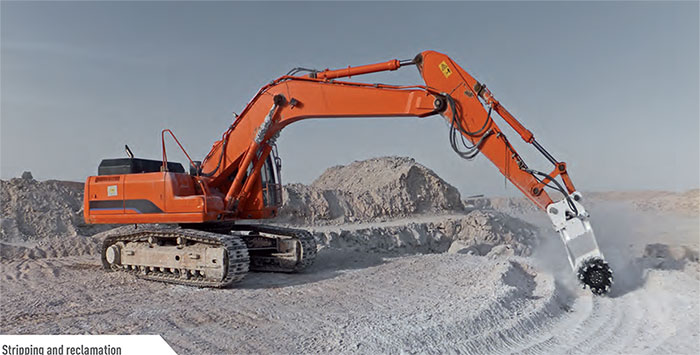

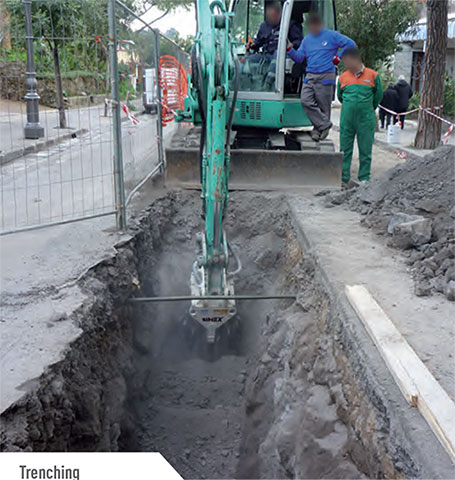

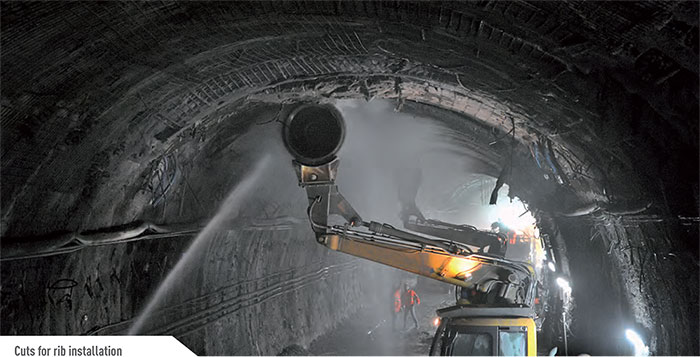

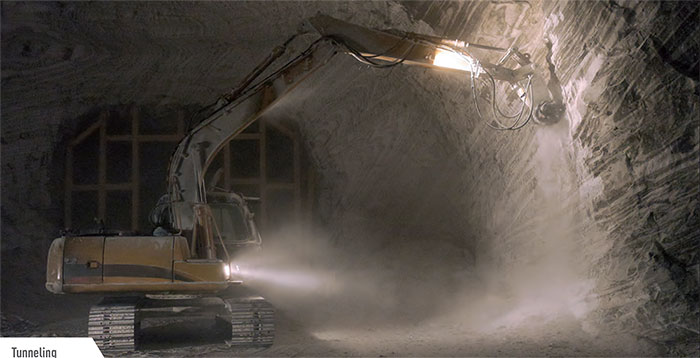

Simex TF cutter heads are ideal for trenching, profiling and resurfacing rock and cement walls, tunneling, quarrying, demolitions, dredging and finishing operations.

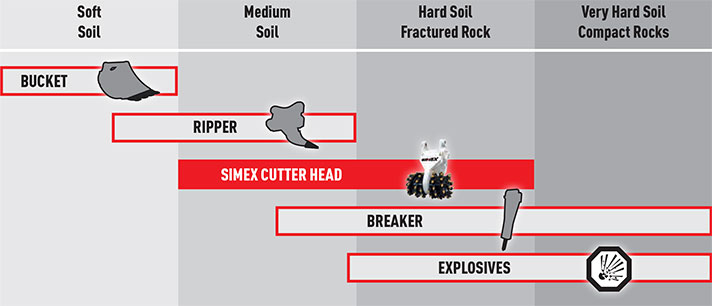

They are highly effective where conventional excavation systems are too weak and percussion systems have little effect.
Their quiet operation allows them to be put to work in sensitive or populated areas (near schools, hospitals, bridges and infrastructure).
They are especially effective for finishing operations requiring maximum precision, minimum intrusionand an optimum aesthetic result.

High torque and high performance guaranteed by integrated high displacement hydraulic piston motor. Shaft transmits motion only and bears no load thanks to double support bearings for each drum.
Milled material is discharged from the trench without getting stuck in the framedue to special shape, which also allows hoses to be hooked up at sides and front.
Easy mounting on excavators,which require a high oil flow at low pressure to deliver efficient hydraulic power. Oil flow limiting valve avoids risk of hydraulic motor over revving.
Replaceable anti-wear plates.

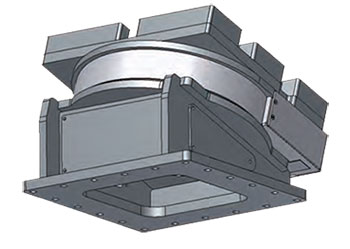

Cutter head can be rotated 90° thanks to square holes of coupling plate.
Filter on feed line prevents impurities from entering the motor, for example when hoses are being connected to the excavator.

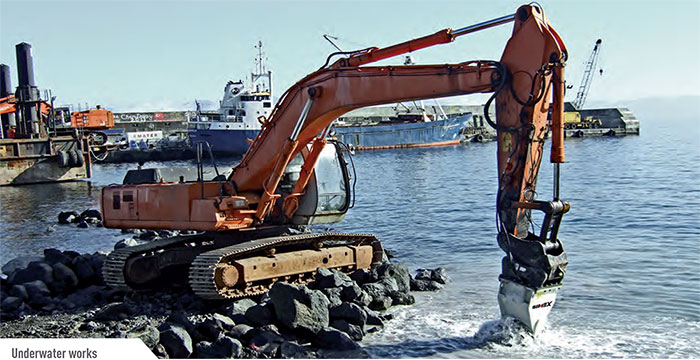

Gaskets fitted on drums seal against dust also when attachment is submerged into the ground, even in muddy conditions.
Shaft transmits motion only and bears no load thanks to double support bearings for each drum.

Designed to achieve higher efficiency of the demanded application.

HP Drum (standard)

Thanks to special layout of teeth and reduced width, penetrates deep even into hard materials.
GP Drum (optional)

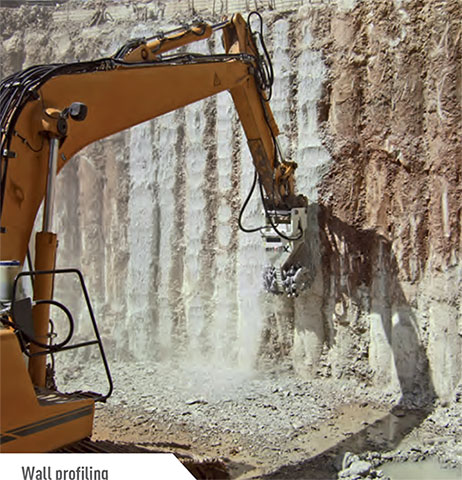

Larger width drum recommended for wall profiling and various types of jobs.
WP Drum (optional)

Special drum for finishing and profiling.

Multiple tooth geometries available for milling different materials.
