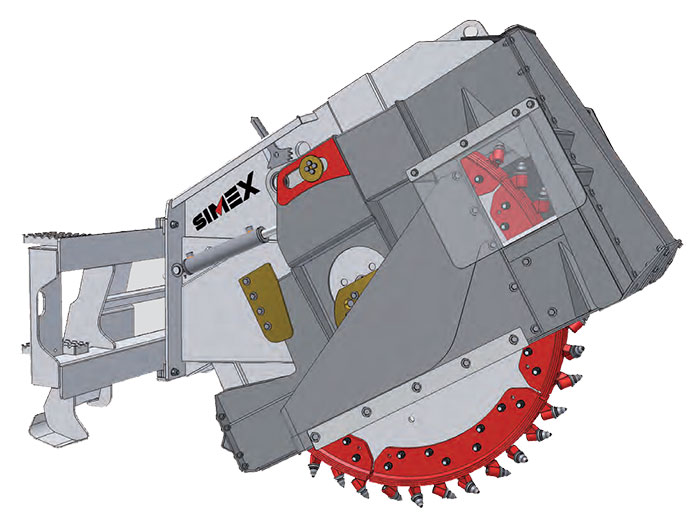

IPE Eagle - Simex

For cutting and narrow trenching.
Specially recommended for microtrenching for fiber optic installation.
Designed for fixed-section trenching on hard and compact surfaces: asphalt, cement and rock.
Full wheel protection at any working depth guarantees maximum safety of persons and property.
The hydraulic piston motors in direct drive with the cutting disk provide maximum hydraulic efficiency and a high cutting force.
Hydraulic depth adjustment.

Self-levelling system.
Slides parallel to surface.
Constant trenching depth.
Variable-width frame.
Frame width varies at front with changes in wheel width to improve emptying of trench. Edges of trench remain intact to favor cutting precision.

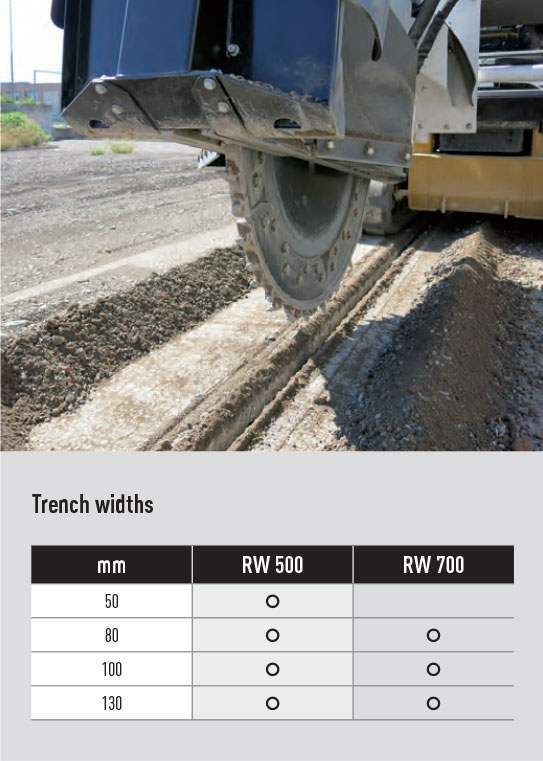

Quick changes in trench width.
Disk with removable and interchangeable sectors allows for quick adjustment to trench widths while maintaining the same base disk.
Clean trench.
Special design of outlets allows trench to be cleared efficiently at the depth programmed. Material is discharged to right and left, or can be expelled to LH side only by closing RH outlet (useful for roadside trenching).

Constant trenching depth.
Self-levelling to the surface ensures a constant trenching depth in any condition, regardless of the ground contour and the position of the attachment with respect to the prime mover. Lateral slides automatically align to the cutting surface.
Excellent visibility for the operator. Operator is free of problems due to poor visibility of the work area, since trenching depth exactly and constantly corresponds to that programmed thanks to self-levelling feature.
Maximum stability and no vibrations.
The constant and perfect alignment with the surface is a guarantee of maximum stability.
Electrohydraulic valve controlled from operator’s seat for regulating flow also with 3-way connection to prime mover (also with wheel in operation).
